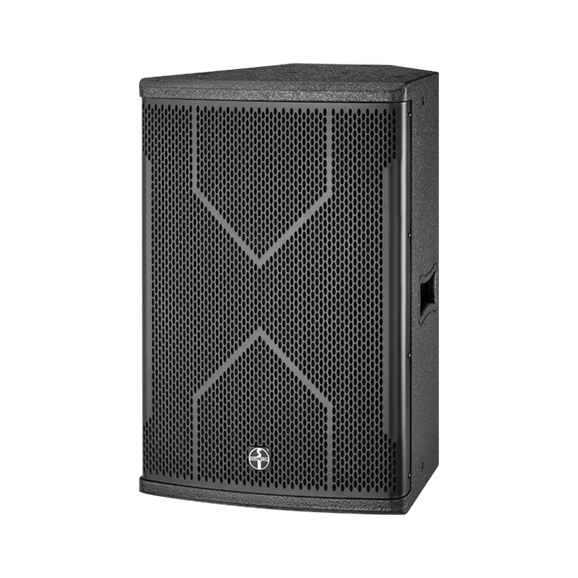

ES-615 Full-range speaker

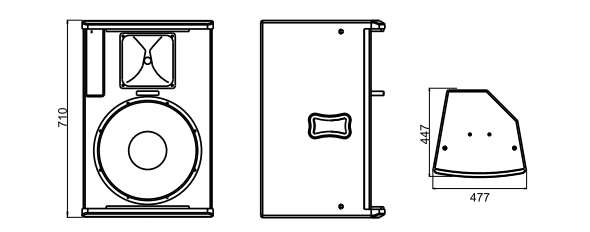

Layout：

Product features：

◎ Small and medium-sized meeting rooms, multi-function halls, churches,

and various occasions to enhance the sound.

◎ ES-615 speaker clean and simple appearance, round wrapped net design, highlight the product grade high-end atmosphere, designSteady and do not break elegant beauty. It Can do a the main sound reinforcement andf also can be used for auxiliary sound complement, two way design, ultra-high cost performance.

Specification：

System Type: 2-way 1×15'' full-range speaker

HF Transducer: 1×1'' throat \ 1×1.4'' voice coil

LF Transducer: 1×15'' woofer\ 1×2.6'' voice coil

Frequency Response(±3dB): 40Hz-20KHz

Coverage Angle (HXV): 80°x60°

Sensitivity (1W @ 1m): 100dB

SPL: continuous: 122dB, peak: 128dB

Nominal Impedance: 8Ω

Rated Power: 300W (RMS),600W(PEAK)

Enclosure Material: 15mm birch plywood

Suspension: 15× M8 threaded mounting points

Grille: molded hexagonal grill

Connectors: 2× NL4SPEAKON

Connection: 1+,1-

Dimensions (WxHxD): 477x710x447mm

Packaging dimensions: 555x787x520mm

Net Weight: 23.9KG
